Git with vimdiff

by on Feb.18, 2012, under System

Some people are really a big fan of ‘vim’ and so they also use ‘vimdiff’ over the default ‘diff’ utility. ‘vimdiff’ shows you a side by side diff which is very easy to read (shown in the image below).

vimdiff in action

vimdiff in action

Now if you are using ‘git’ and you run ‘git diff’ you will get a diff which is not very human readable. Thats where ‘vimdiff’ comes.

> git diff
diff --git a/todo-java-app/pom.xml b/todo-java-app/pom.xml
index 96aebba..6b9af3f 100644
--- a/todo-java-app/pom.xml
+++ b/todo-java-app/pom.xml
@@ -1,5 +1,6 @@

+testing
     4.0.0
     com.rokoder
     todo-java-app
@@ -48,4 +49,4 @@
             5.1.18

-
\ No newline at end of file
+
>
>

‘git’ supports ‘vimdiff’ as a diff tool. Run the below command to change the diff tool to ‘vimdiff’.



>git config --global diff.tool vimdiff
>

Now to access this diff tool.

> git difftool

Viewing: 'todo-java-app/pom.xml'
Hit return to launch 'vimdiff':
>

It will show open the vimdiff window. If you are OK/happy with ‘git difftool’ command you are done:

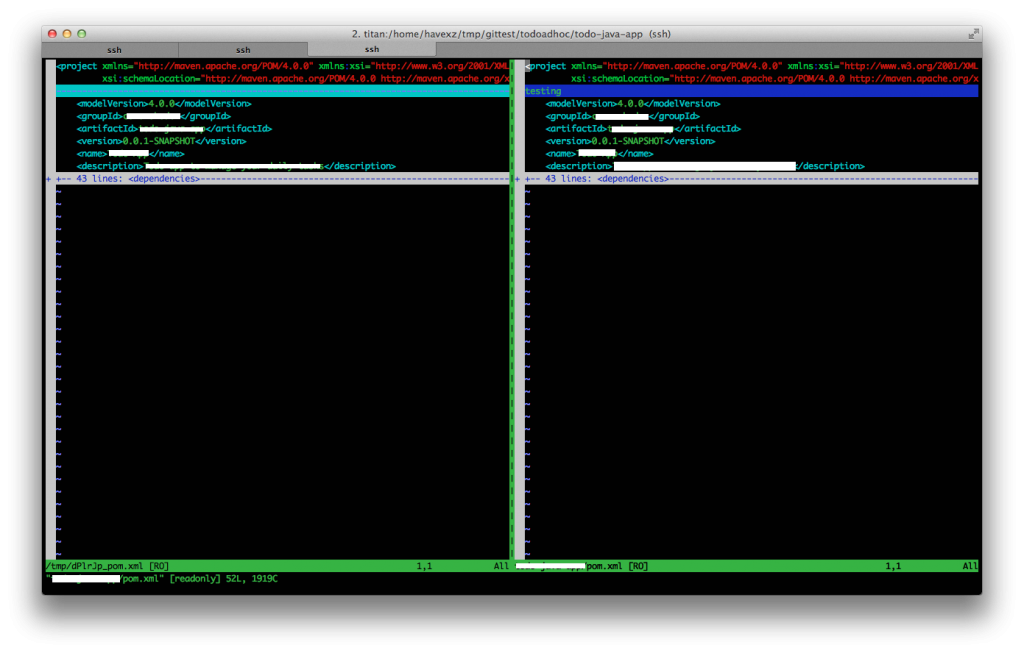

git difftool with vimdiff as diff tool

git difftool with vimdiff as diff tool

But if you run `git diff` well you wont see ‘vimdiff’ but the same results as shown above. So to fix this run.

>git config --global diff.external git_vimdiff_wrapper
>

Now we have to create ‘git_vimdiff_wrapper’ script with

#!/usr/bin/env sh

vimdiff "$2" "$5" > /dev/tty

Then

chmod +x git_vimdiff_wrapper

Make sure it is in the path. And now when you run ‘git diff’ it will show ‘vimdiff’ as it was showing for ‘git difftool’.

> git diff
2 files to edit
git diff with vimdiff as diff

git diff with vimdiff as diff

If you want the default diff behavior then just use the below command:

>git diff --no-ext-diff
diff --git a/todo-java-app/pom.xml b/todo-java-app/pom.xml
index 96aebba..6b9af3f 100644
--- a/todo-java-app/pom.xml
+++ b/todo-java-app/pom.xml
@@ -1,5 +1,6 @@

+testing
     4.0.0
     com.rokoder
     todo-java-app
@@ -48,4 +49,4 @@
             5.1.18

-
\ No newline at end of file
+
>
>
:, , , , , ,
